Miro-Lift wheelchair- and disabled lift

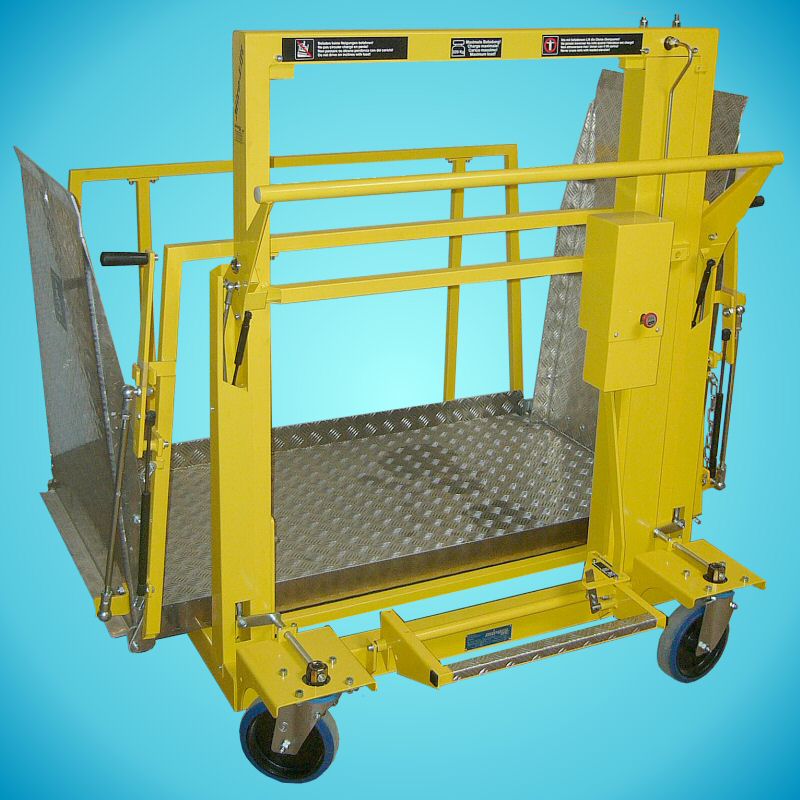

General view

(important details red underlayed)



Typ

MA 4 MA 12 MA 16



Load capacity [kg]

250

320

320

Plattform dimensions [mm]

850 x 1250

850 x 1330
(850 x 1500) (1)

850 x 1330
(850 x 1500)1

Max. Lifting hight [mm]

1173

1033

1033

Operation

Hand drive

Feed driven

Battery driven

Drive

Cable drive with winch

Feed driven hydraulic pump

Hydraulic drive with battery driven hydraulic pump

Empty weight [kg]

155

185

185

Ground clearence [mm]

113

50

50

Diameter of front wheels [mm]

200

125 (2)

125 (2)

Diameter of stearable wheels rear [mm]

200

160 (2)

160 (2)



(1) Bigger platforms as option available

(2) Bigger wheels available
